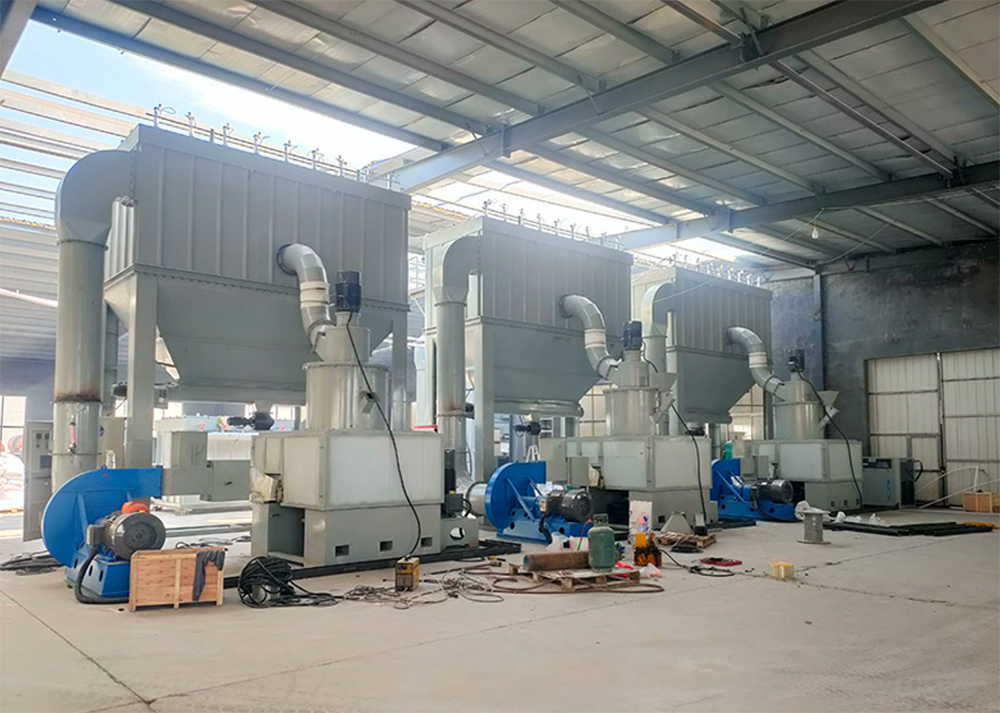

Cronus HGM series ultrafine ring roller mill delivers precision grinding from 300 to 3000 mesh. Engineered for non-metallic mineral processing with over 50 years of manufacturing excellence from Guilin Mining Machinery.
About Our Company
Shanghai Cronus Machinery Co., Ltd. is a wholly-owned subsidiary of Guilin Mining Machinery Co., Ltd. (formerly Guilin Mining Machinery Factory), founded in 1973. With over 50 years of equipment manufacturing history, we are one of the two major grinding equipment manufacturers designated by the former Ministry of Electrical and Mechanical Services of China, and a backbone enterprise of Guangxi's machinery industry.
Our company integrates R&D, design, production, and sales. We specialize in manufacturing Raymond mills, ultrafine ring roller mills (HGM series), vertical roller mills, hydrated lime production lines, and comprehensive mineral processing solutions. All products have passed ISO 9001:2008 and CE international quality system certifications.

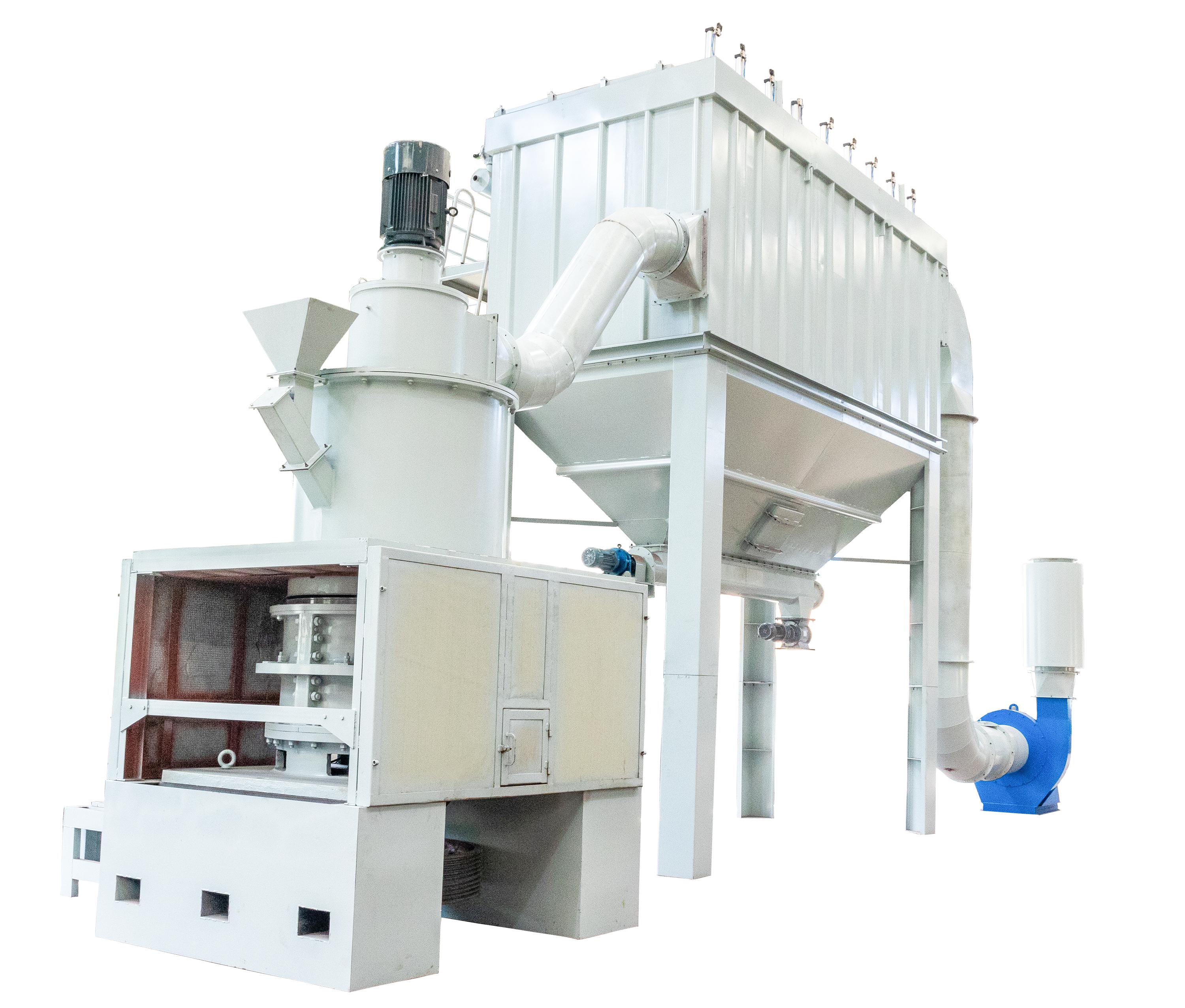

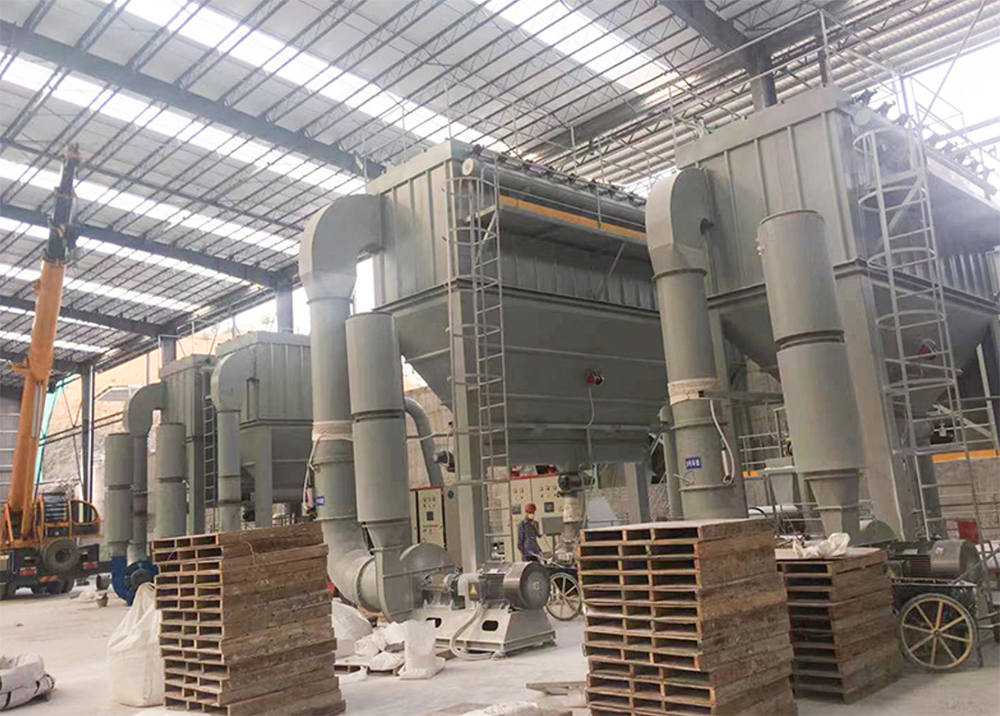

Contact Us TodayThe HGM series ultrafine ring roller mill uses a multi-layer ring roller grinding mechanism to achieve ultra-fine powder production at 300-3000 mesh.
Raw materials are fed into the grinding chamber through a vibrating feeder. Materials smaller than 20mm are continuously and evenly delivered to the mill.
The material is ground between the grinding rollers and rings in multiple layers. The ring rollers rotate around the central shaft while spinning on their own axes, creating high-pressure grinding action.
Ground powder is carried by airflow to the classifier. The high-precision classifier separates fine powder (300-3000 mesh adjustable) from coarse particles, which are returned for re-grinding.
Qualified fine powder passes through the classifier and is collected by the cyclone collector and pulse dust collector. The final product is discharged through the discharge valve.
Our HGM series ring roller mills offer fineness from 300 to 3000 mesh, covering a wide range of production capacities for different industrial needs.
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 | HGM1680 |
|---|---|---|---|---|---|---|
| Ring Diameter (mm) | 800 | 900 | 1000 | 1000 | 1300 | 1680 |
| Ring Number (layer) | 3 | 3-4 | 3-4 | 4 | 4 | 4 |
| Roller Number (pcs) | 21 | 24-32 | 27-36 | 34-40 | 40-44 | 44 |
| Input Size (mm) | ≤20 | ≤20 | ≤20 | ≤25 | ≤25 | ≤30 |
| Output Size (mesh) | 300-3000 | 300-3000 | 300-3000 | 300-3000 | 300-3000 | 300-3000 |
| Capacity (t/h) | 0.4-5 | 0.6-7 | 0.8-10 | 1.2-15 | 2.5-25 | 5-40 |
| Main Motor (kw) | 55-75 | 90-110 | 132-160 | 185-200 | 250-280 | 355-400 |
| Fan Motor (kw) | 45-55 | 75-90 | 90-110 | 132-160 | 160-200 | 220-280 |
| Overall Dimension (m) | 10x3x5.5 | 12x3.5x6 | 14x4x6.5 | 14x4.5x7 | 16x5x7.5 | 20x6x9 |
The HGM ultrafine ring roller mill is specifically designed for non-metallic mineral processing. Below are the materials our mill can process with excellent results.

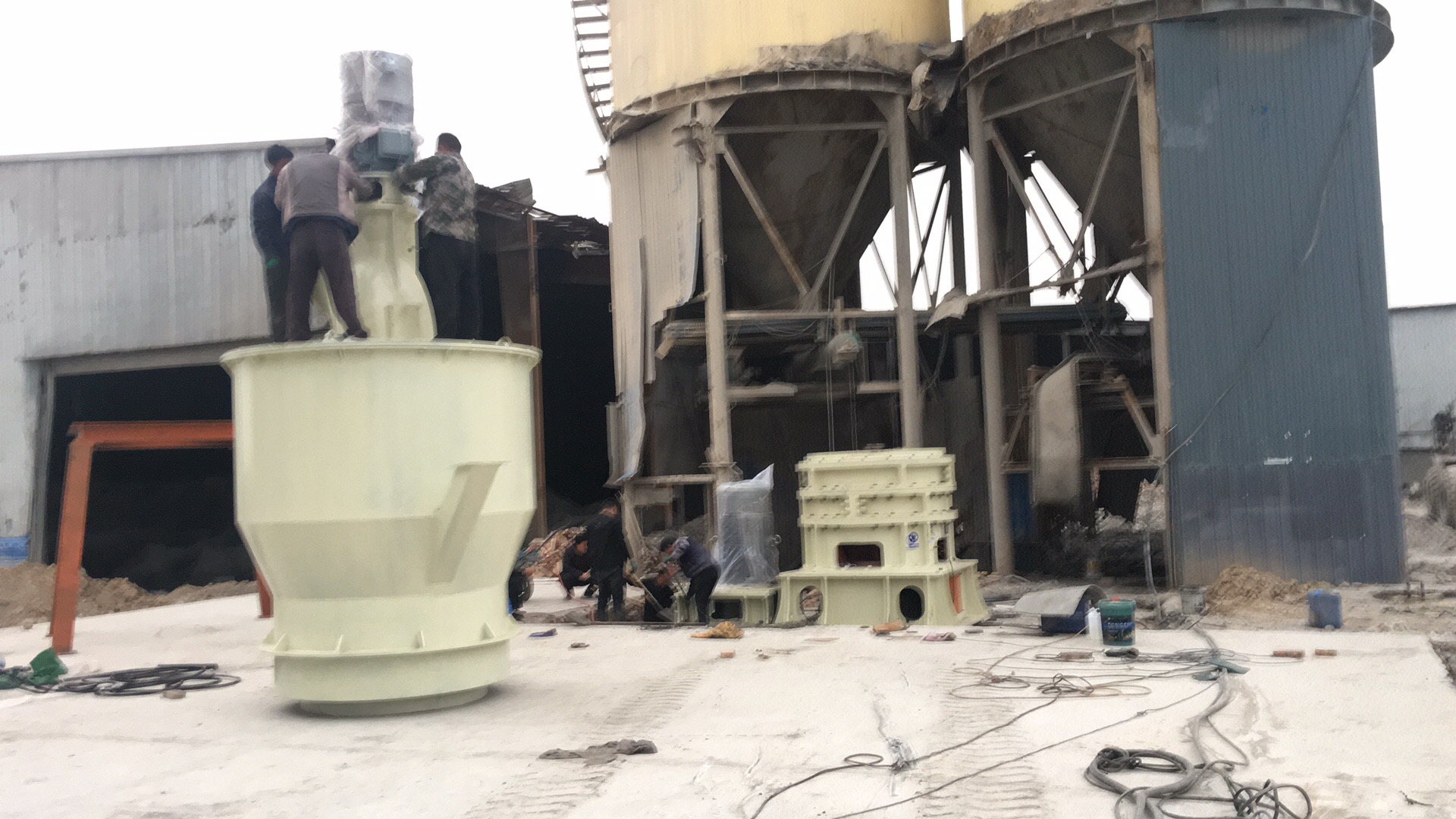

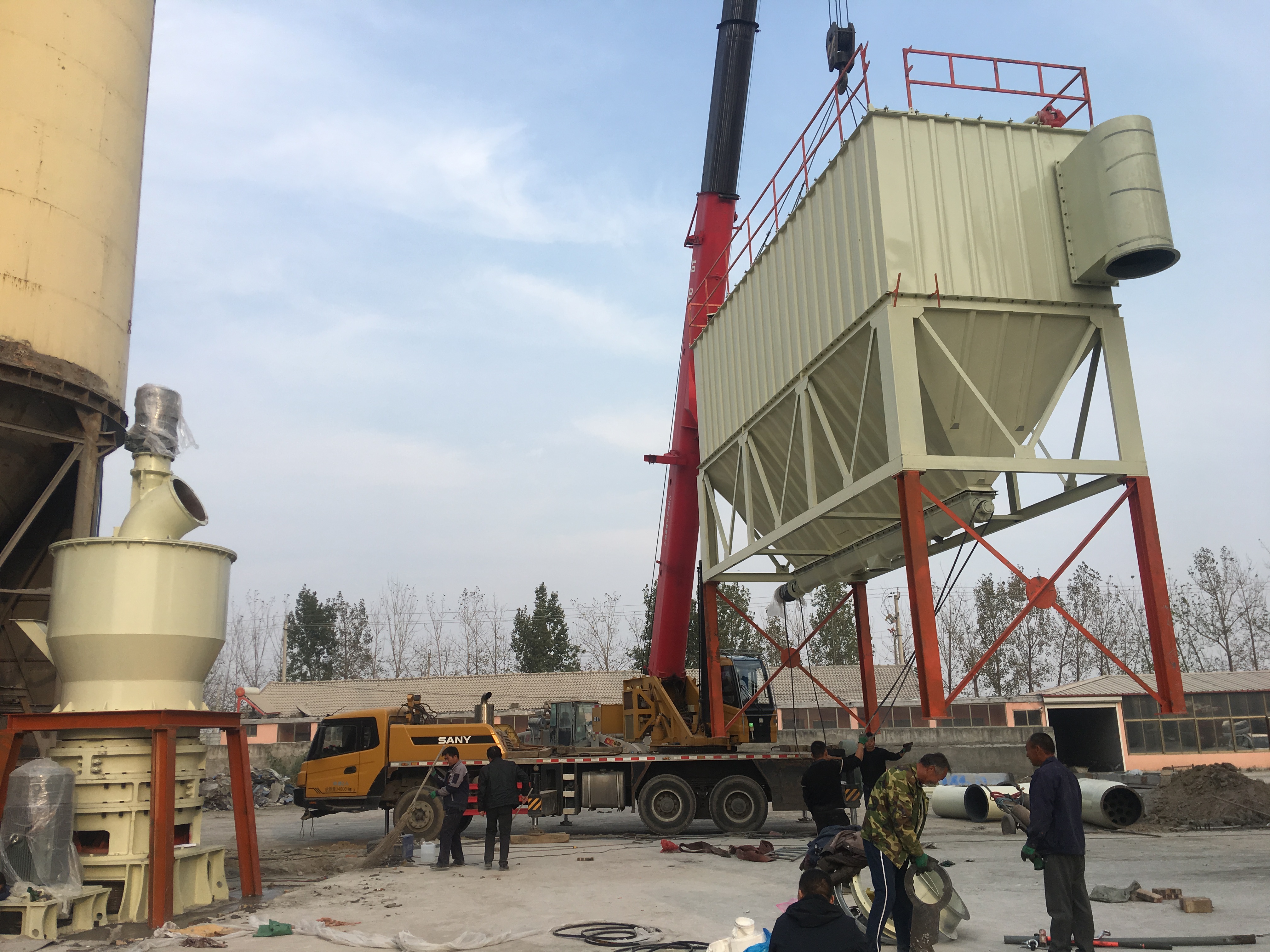

Calcium carbonate powder for paint, paper, plastics
Construction, desulfurization, fillers
Cosmetics, ceramics, paper, rubber
Heavy/light CaCO3 for plastics, rubber, coatings

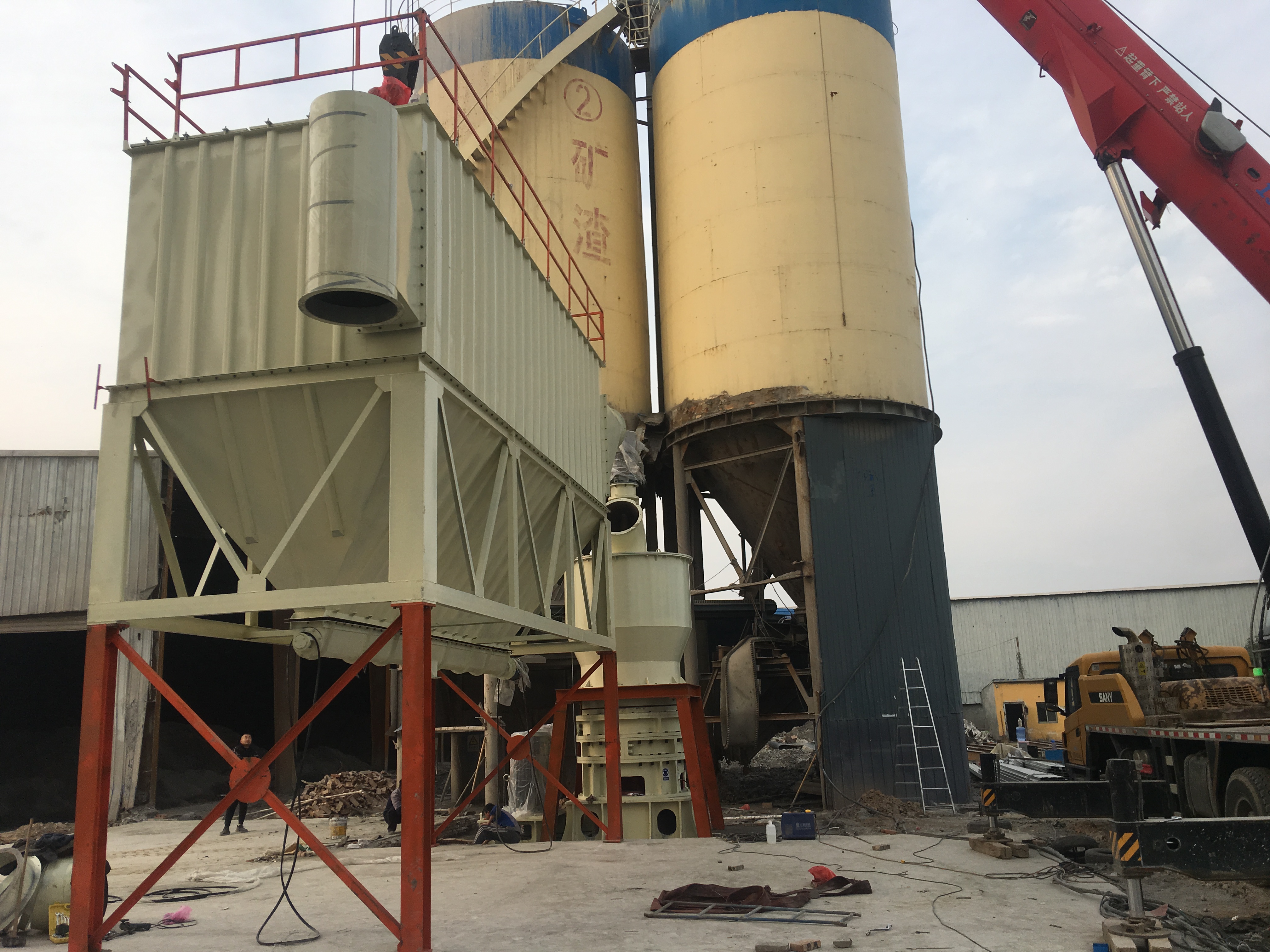

Rubber reinforcement, pigments, inks

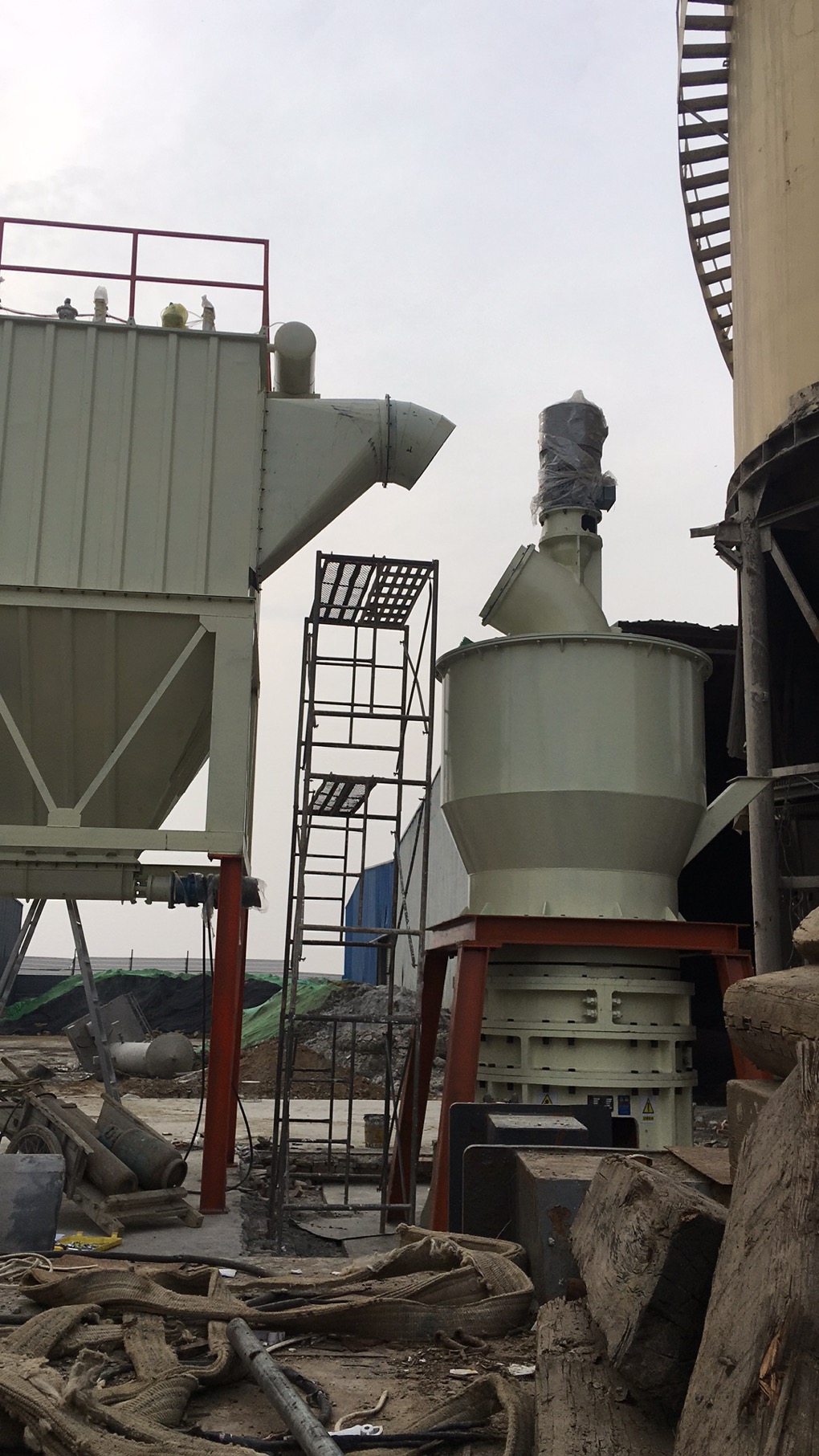

Oil drilling, medical, chemical industries

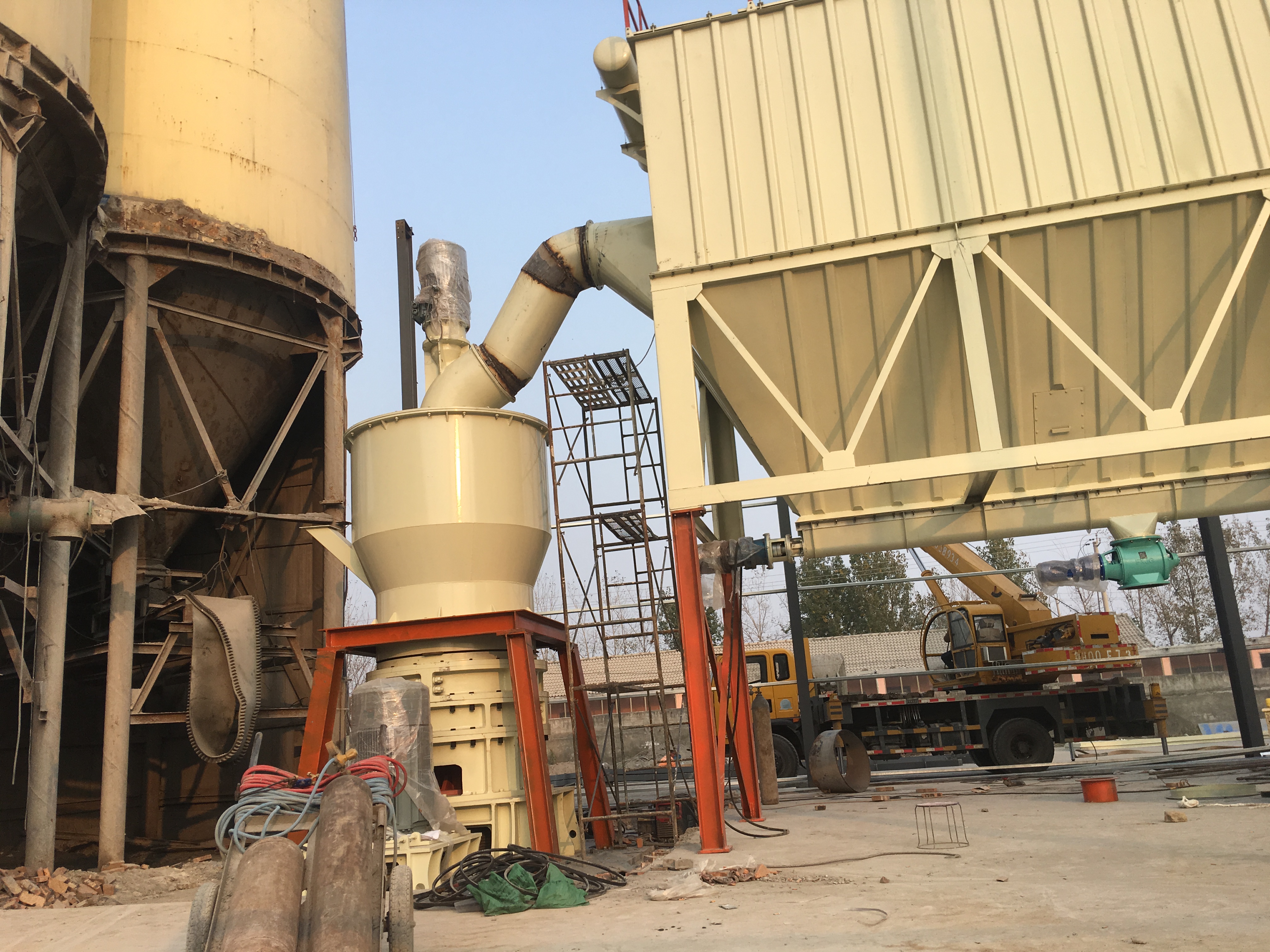

Ceramics, paper coating, refractories

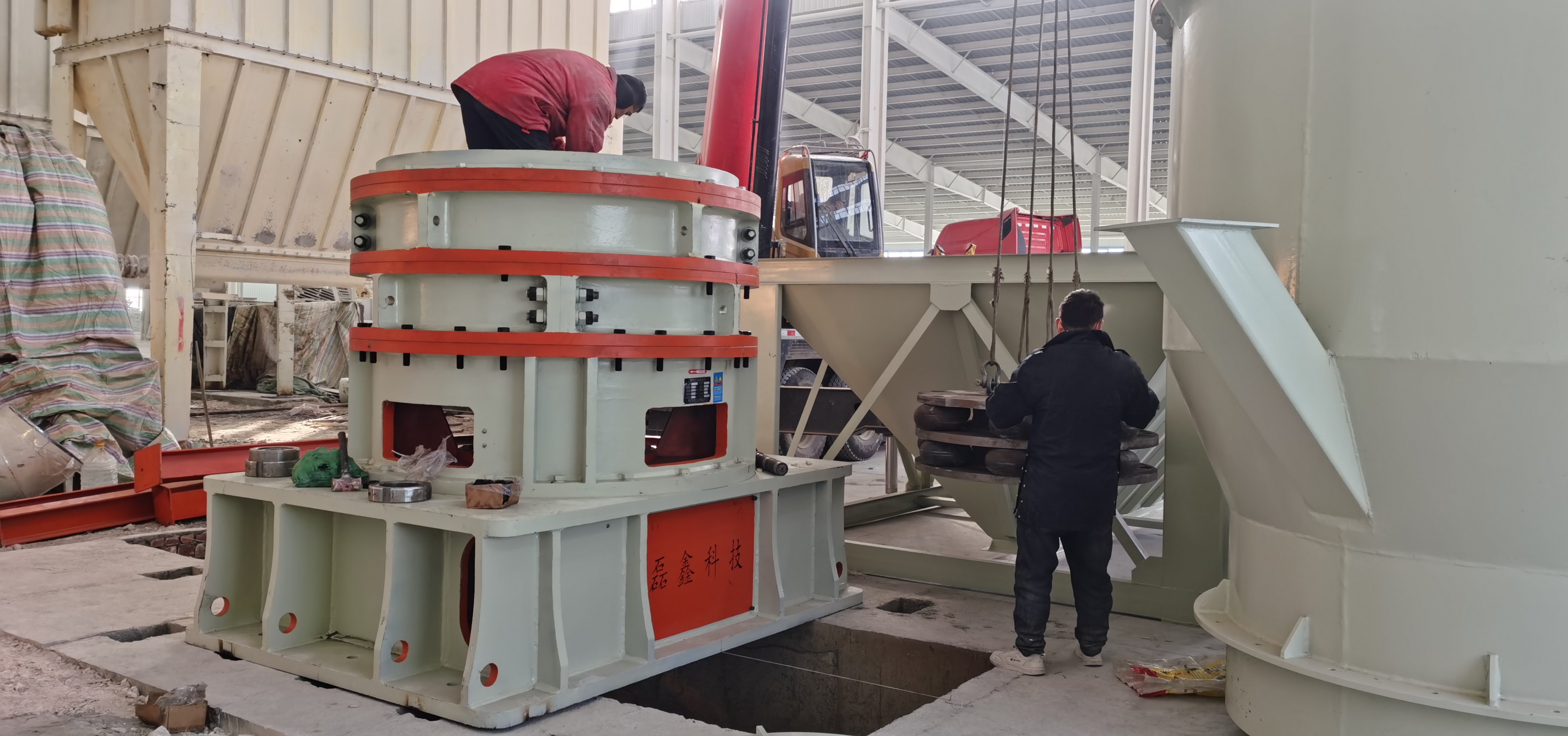

Glass, ceramics, magnesium production & more
Other applicable materials: Marble, Bentonite, Graphite, Mica, Fluorite, Zeolite, Wollastonite, Bauxite, Gypsum, Magnesite, Phosphate Rock, and more non-metallic minerals.
Industries served: Paint & Coatings, Paper Making, Plastics & Rubber, Building Materials, Chemicals, Ceramics, Refractories, Agriculture, and Environmental Protection.
Watch our HGM series ring roller mill in operation at customer sites and factory testing.
Cronus supplies complete spare parts for HGM series ultrafine ring roller mills. All key components are manufactured with premium wear-resistant materials including 42CrMo and Si18CrMo alloy steels for maximum durability and extended service life.
High-chromium alloy steel grinding rollers with excellent wear resistance. Precision machined for optimal grinding performance and long service life. Available for all HGM models.
Multi-layer grinding rings made from premium wear-resistant alloy steel. Heat-treated for optimal hardness and toughness balance. Extended replacement intervals.

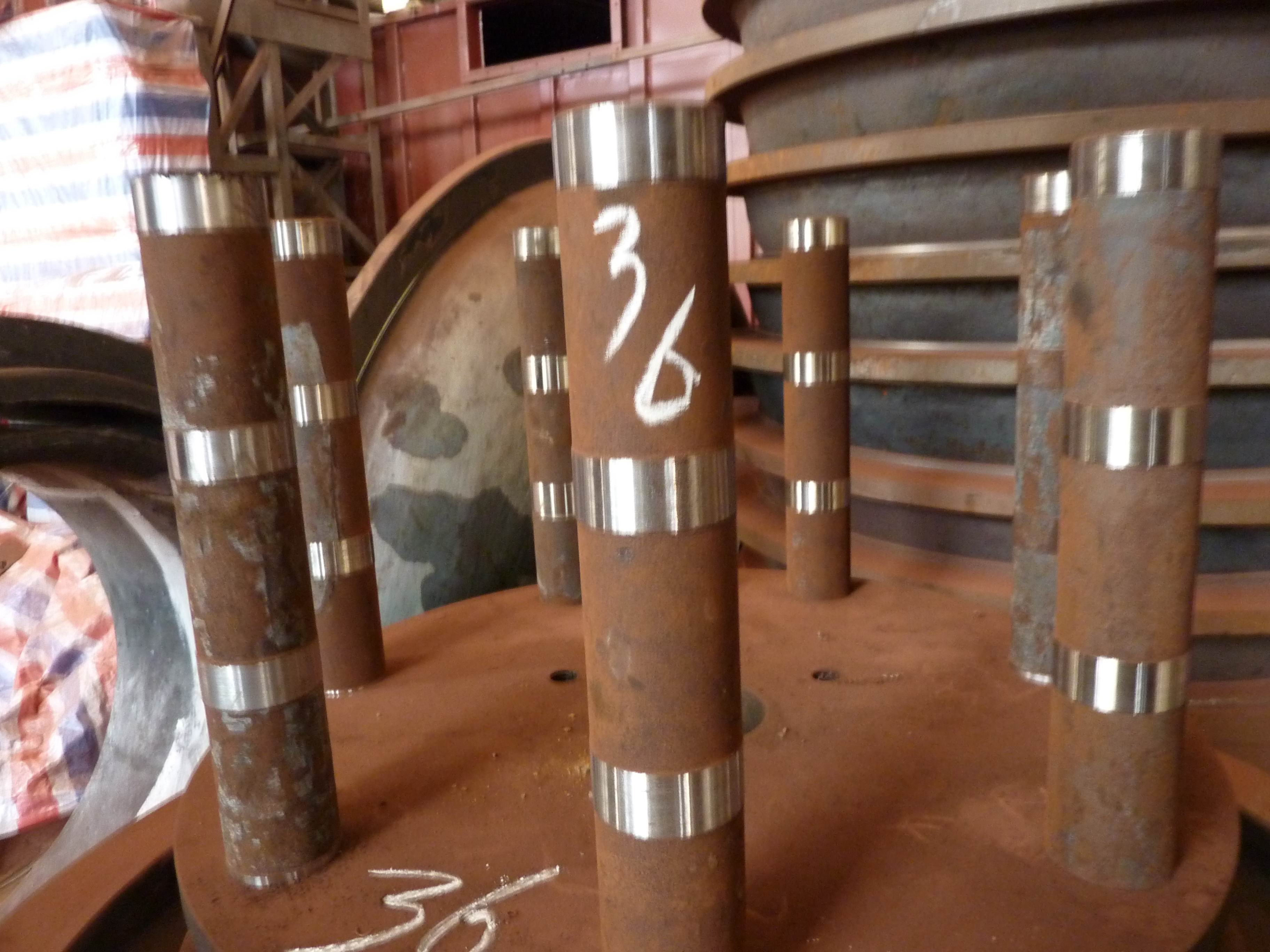

High-strength shaft pins connecting rollers to the rotating disc. Precision heat-treated 42CrMo steel ensures reliable operation under high-load conditions.

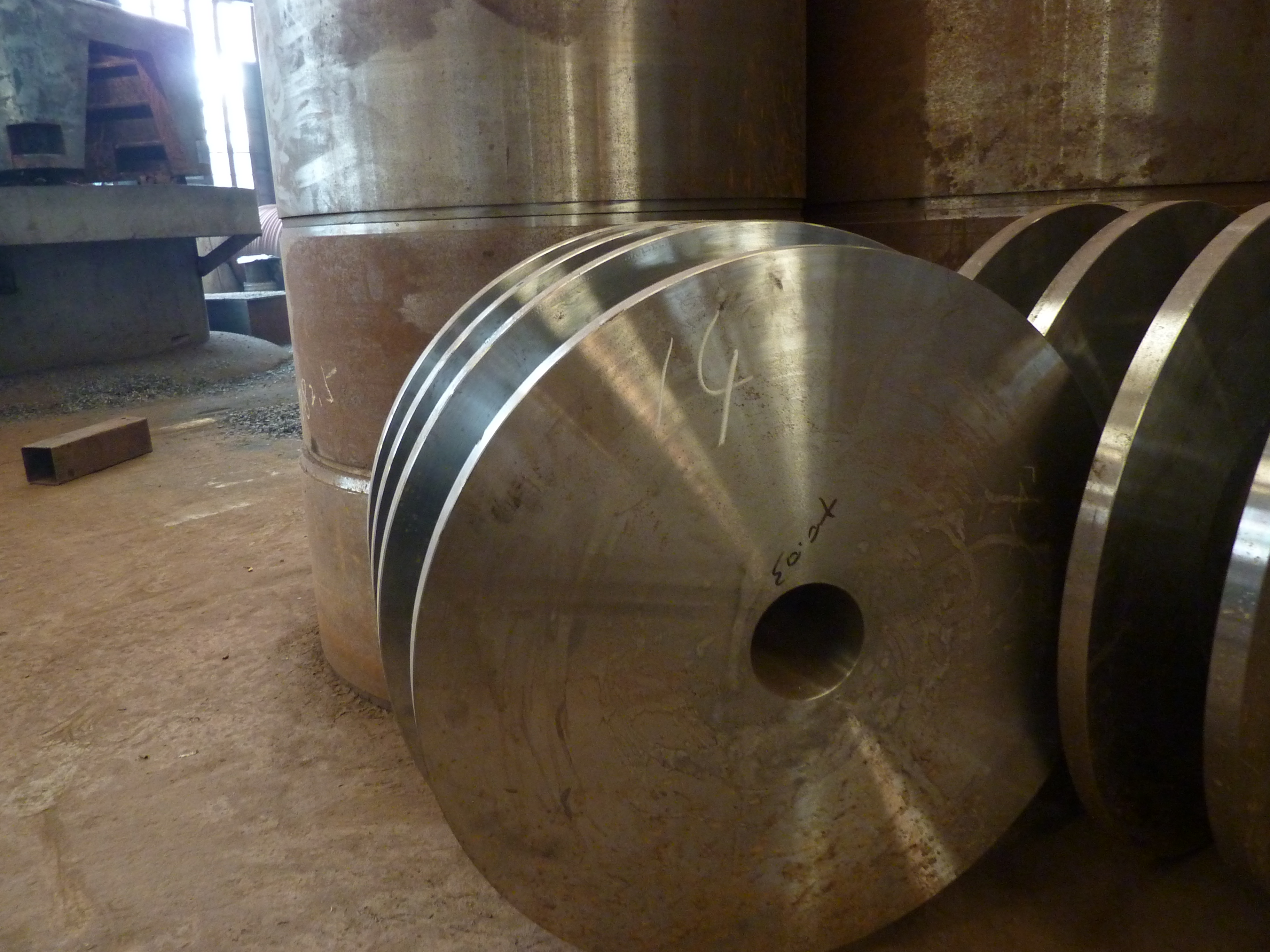

The rotating disc holds multiple grinding rollers. Made from premium Si18CrMo alloy for high-temperature and high-wear resistance. Balanced for smooth operation.
High-precision classifier for 300-3000 mesh separation. Adjustable speed control for precise particle size distribution.

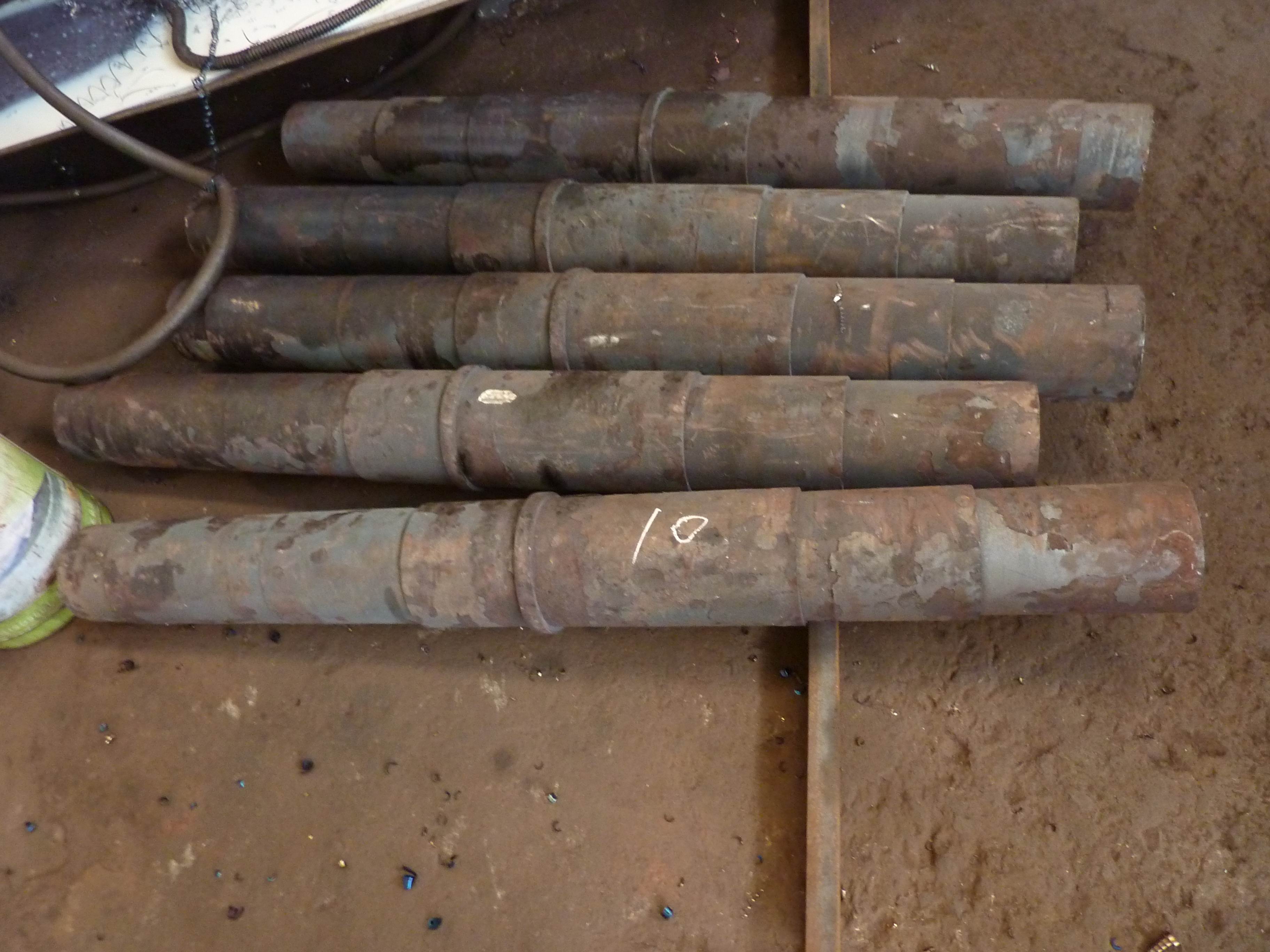

Heavy-duty forged main shaft with precision bearings. The core component transmitting torque to the grinding mechanism.

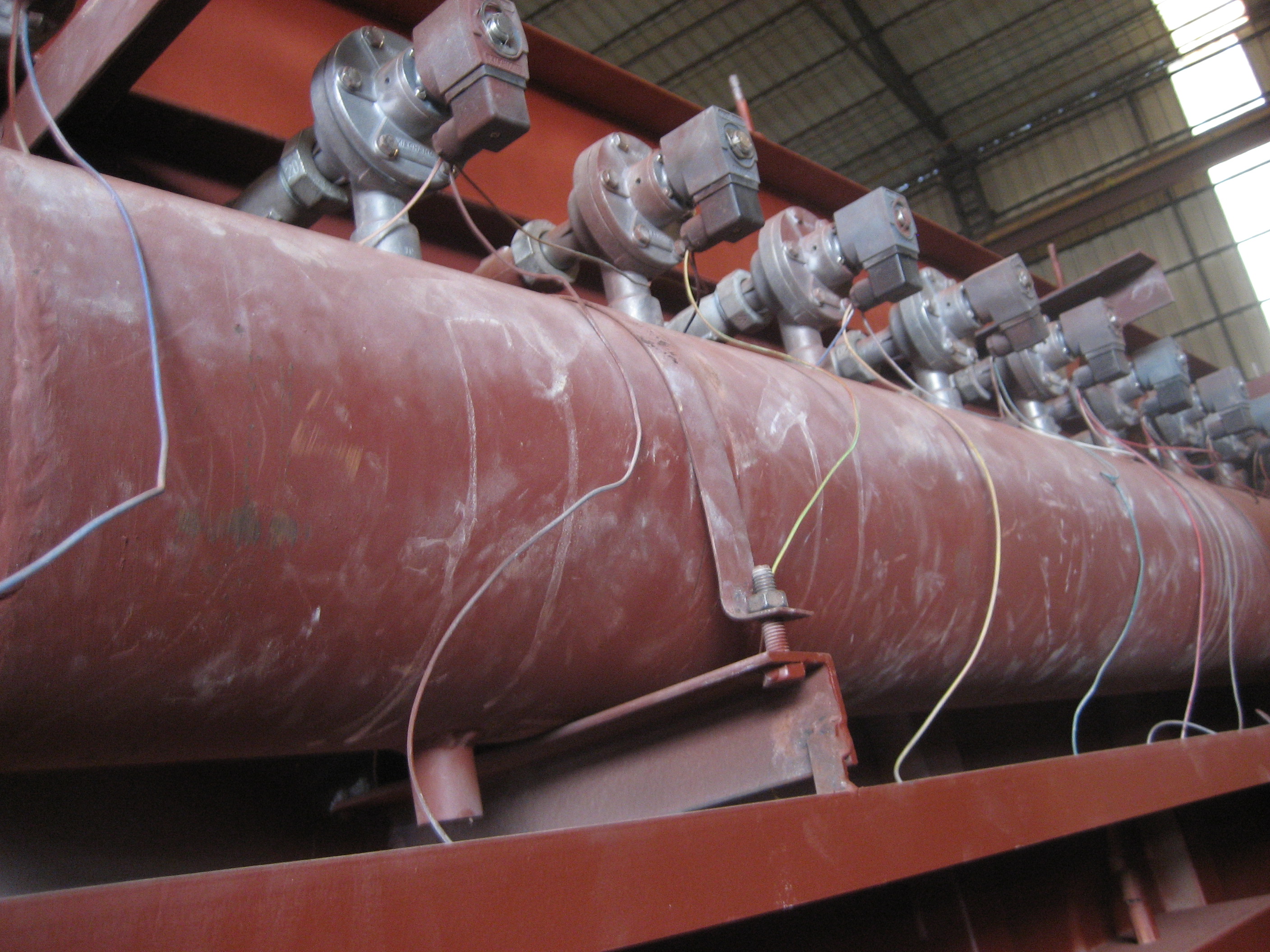

Efficient pulse-jet dust collection system ensuring clean operation and environmental compliance.

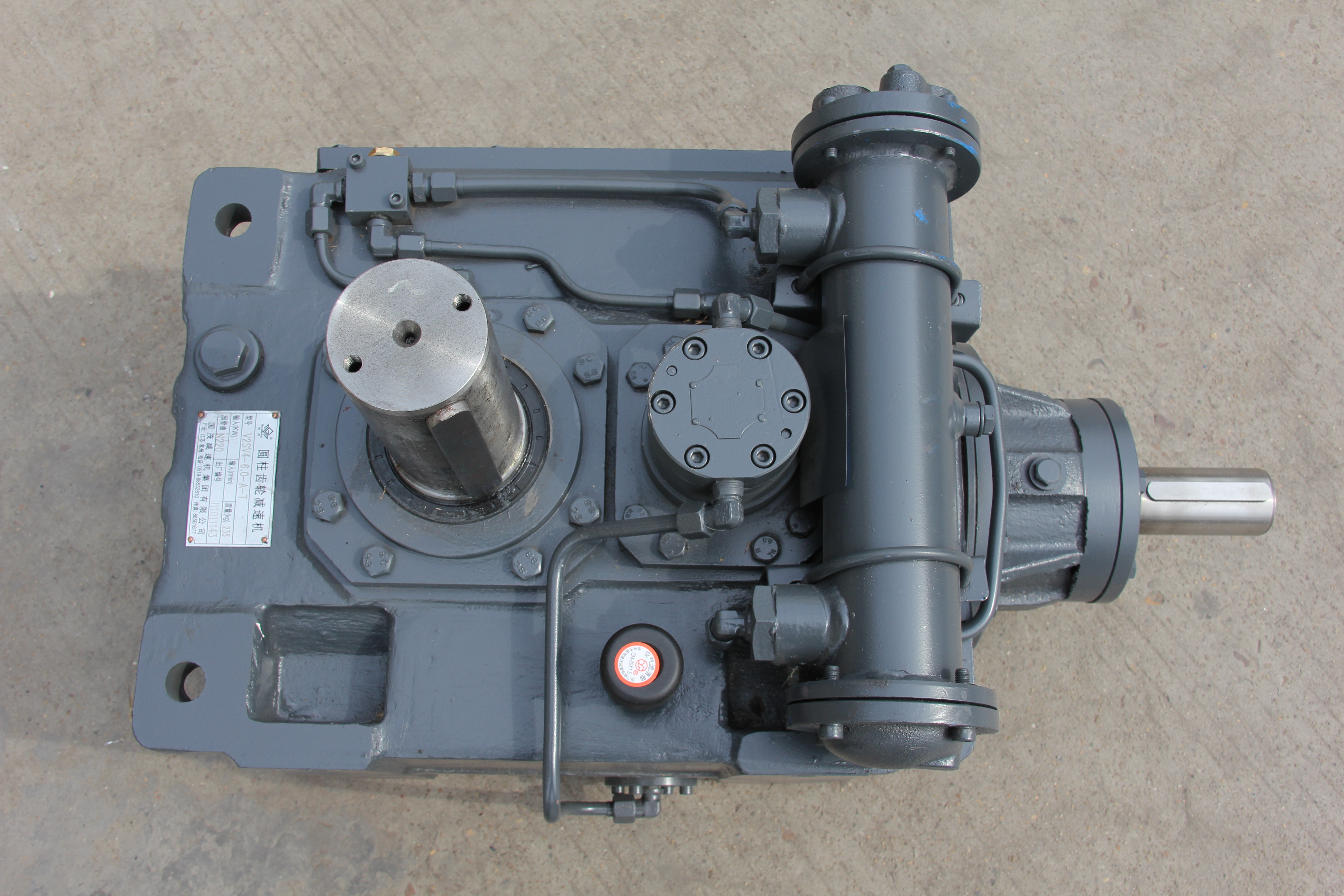

Industrial-grade speed reducer with hardened gears. Reliable power transmission for continuous operation.
All Cronus spare parts are manufactured to OEM specifications using premium materials. Our 42CrMo and Si18CrMo alloy steel components deliver 30-50% longer service life compared to standard materials. We maintain a comprehensive inventory for fast delivery worldwide.
Inquire About Spare PartsWhy choose the Cronus HGM series ultrafine ring roller mill? See the detailed comparison below to make an informed decision for your powder processing needs.
| Feature | HGM Ring Roller Mill (Ultrafine Mill) |
Raymond Mill (Traditional) |
Ball Mill (Conventional) |
|---|---|---|---|
| Fineness Range | 300 - 3000 Mesh | 80 - 400 Mesh | 100 - 300 Mesh |
| Min. Particle Size | 5 Microns | 38 Microns | 50 Microns |
| Energy Efficiency | ★★★★★ 30-40% lower than ball mill |
★★★ | ★★ |
| Wear Parts Life | ✓ 1-2 years with 42CrMo | 6-12 months | 3-6 months |
| Noise Level | ✓ Low (enclosed system) | Medium | ✗ High |
| Dust Control | ✓ Full negative pressure | ✓ Good | ✗ Needs extra system |
| Footprint | ✓ Compact | Medium | ✗ Large |
| Investment Cost | Medium | Low | High |
| Operating Cost | ✓ Low | Medium | ✗ High |
| Best For | Ultrafine powder 300-3000 mesh |
Coarse to medium 80-400 mesh |
Coarse powder batch processing |
💡 Verdict: For ultrafine powder production (300-3000 mesh), the HGM Ring Roller Mill is the clear winner in fineness, efficiency, operating cost, and environmental performance.

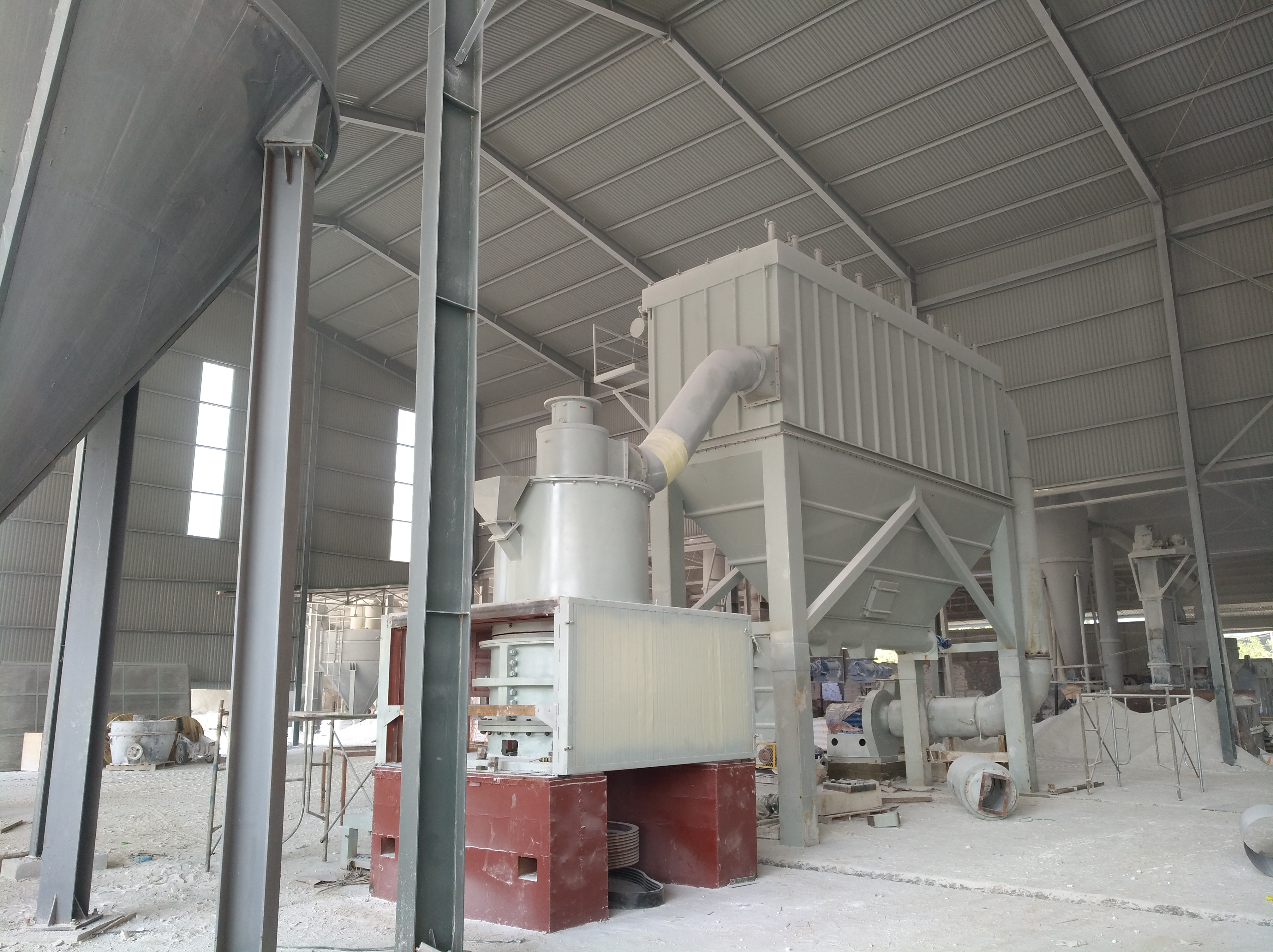

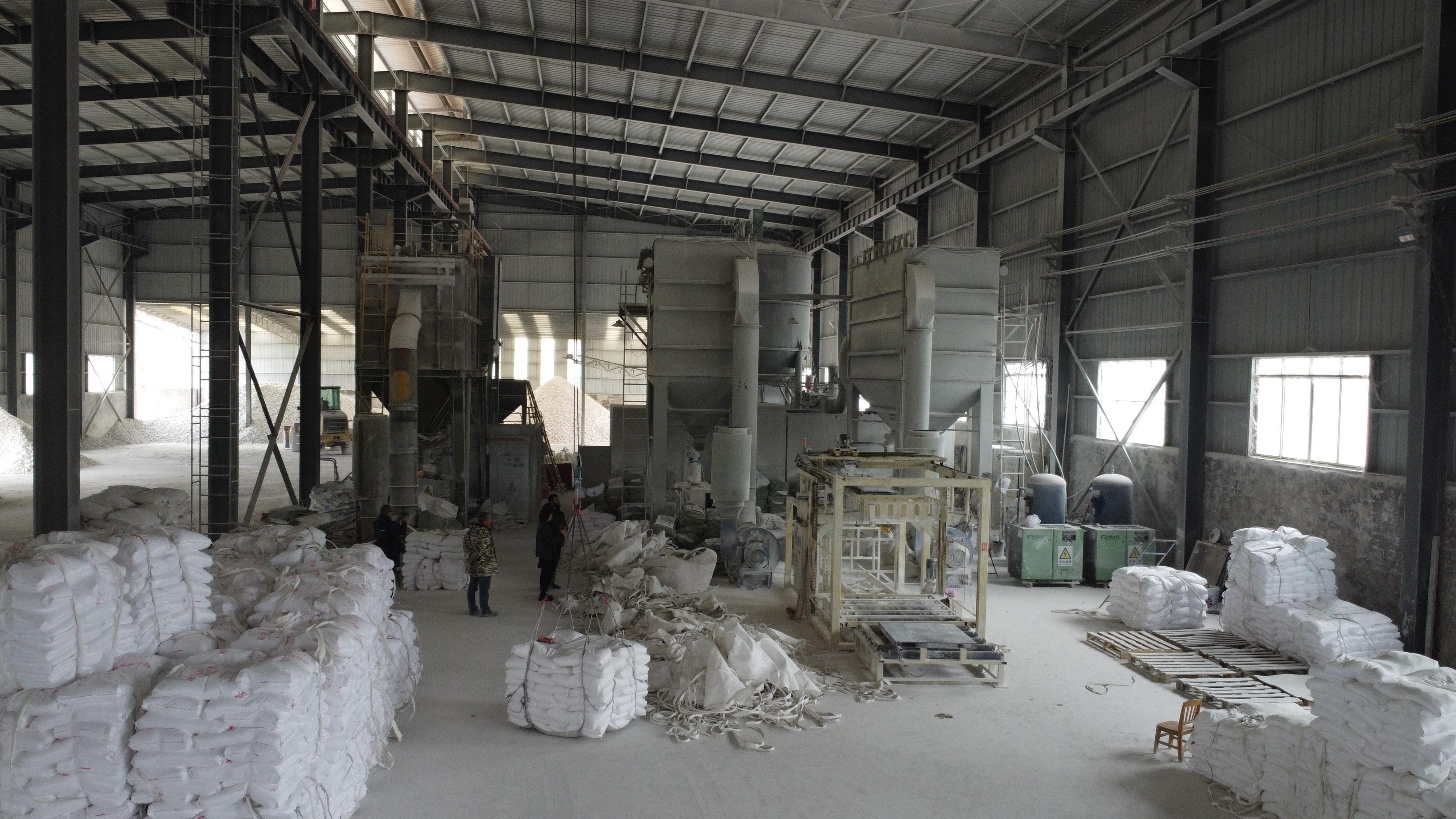

Cronus ultrafine ring roller mills are trusted by customers worldwide. We have delivered successful projects across Africa, Asia, the Middle East, and South America, with a strong presence in Nigeria and African markets.
Nigeria • Ethiopia • Kenya • Ghana • Egypt • South Africa • Tanzania • Zambia • Sudan • Uganda

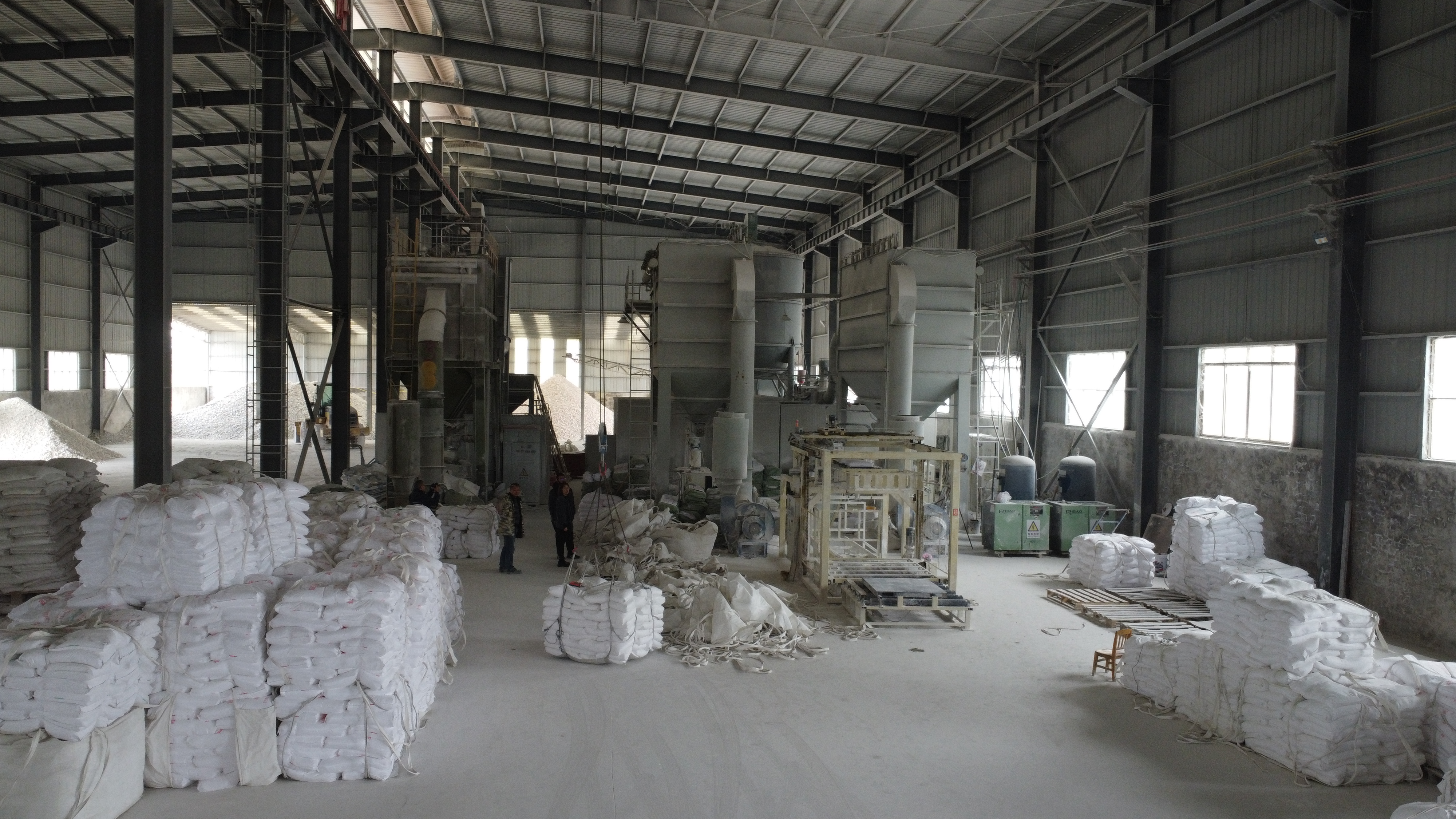

🇳🇬 Nigeria
HGM100 ultrafine ring roller mill processing limestone and calcite into 800-1500 mesh ultra-fine powder. Capacity: 5-8 tons per hour. Installed 2024.
🇳🇬 Nigeria
HGM125 ring roller mill for barite ultrafine grinding at 300-600 mesh for oil drilling applications. Capacity: 8-12 tons per hour.
🇳🇬 Nigeria / 🇰🇪 Kenya
Multiple HGM series installations across Nigeria and Kenya for talc and kaolin ultrafine powder production. Fineness: 800-2000 mesh.
🇵🇭 Ethiopia
HGM90 ultrafine mill for limestone grinding at 600-1200 mesh. Serving the construction materials and filler industries.

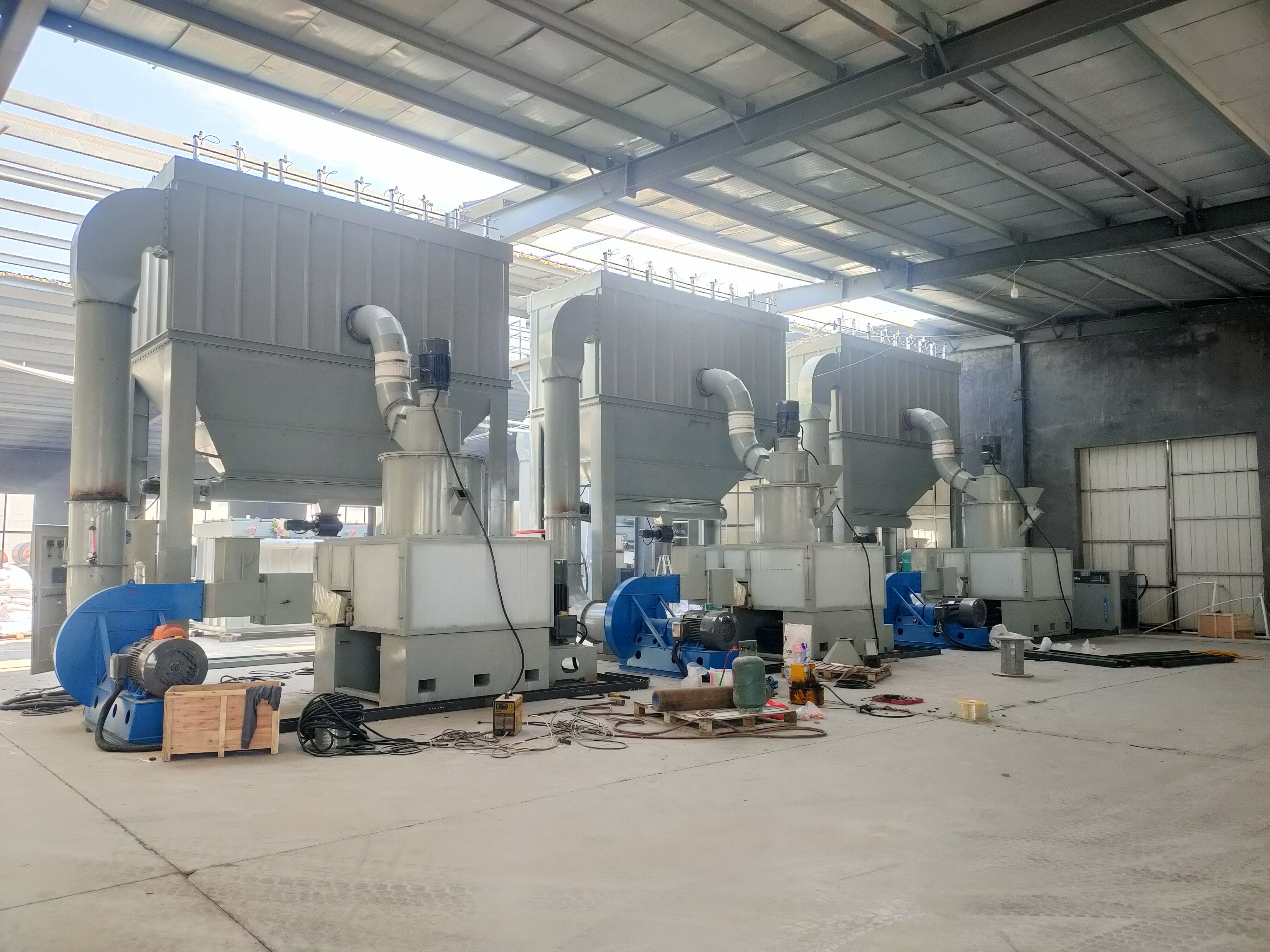

🇨🇳 China - Nanyang

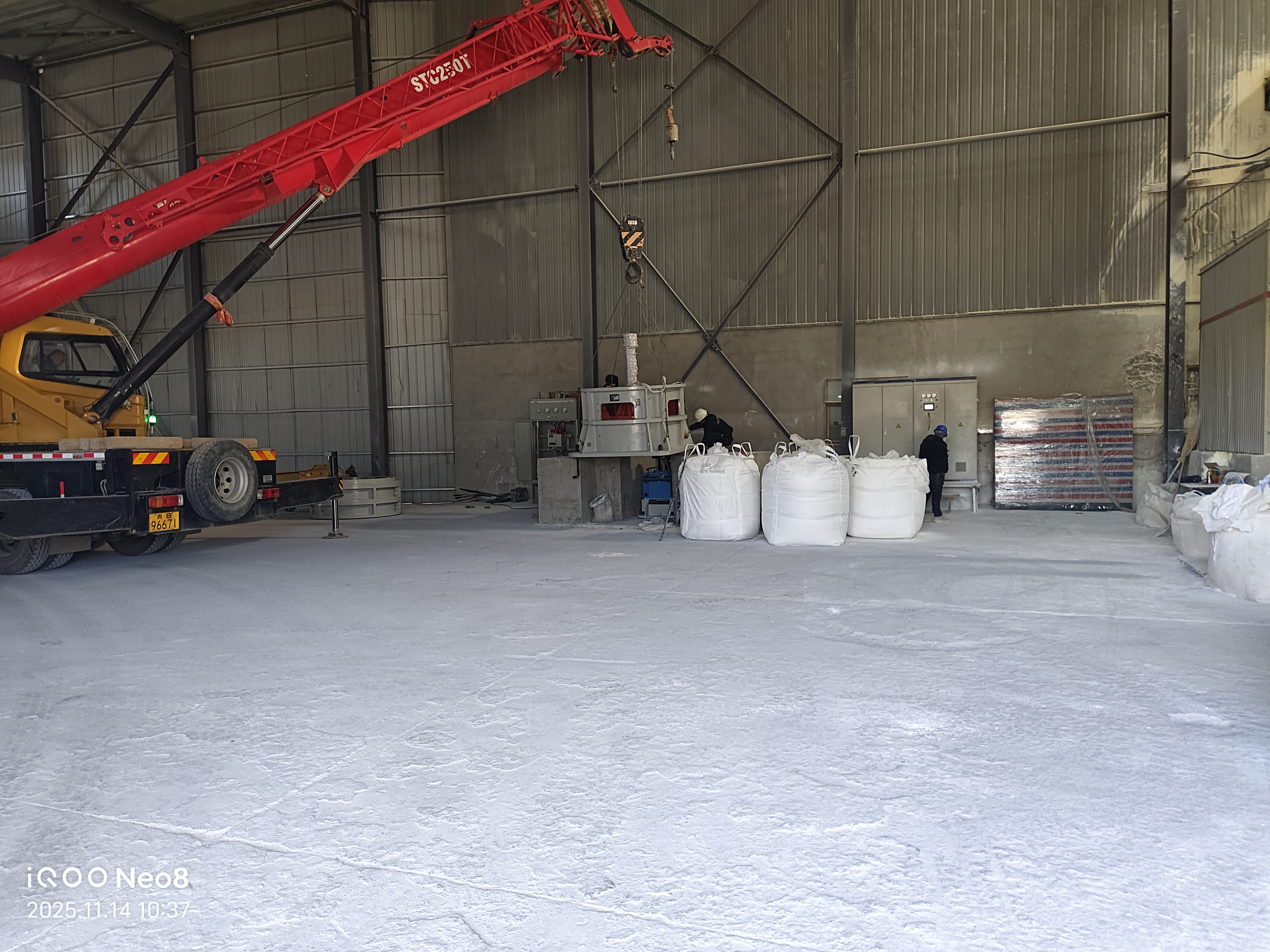

HGM125 ring roller mill for magnesium oxide ultrafine grinding at 300-1000 mesh. High-hardness material processing with excellent performance.
Multiple Countries
Our HGM series mills operate in 30+ countries. Contact us to visit a customer site near you or arrange a factory visit in Guilin, China.
